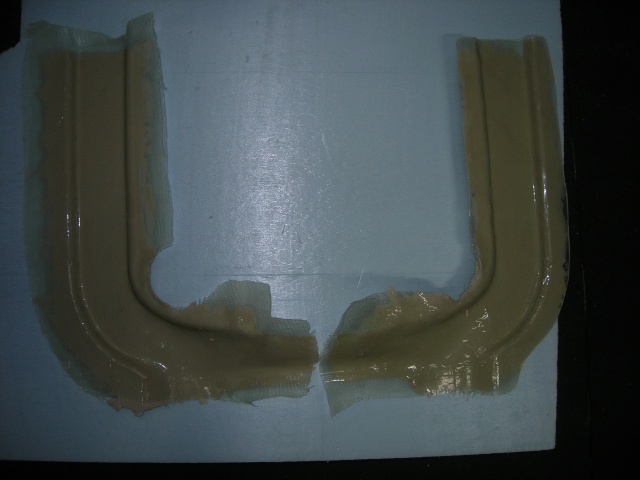

Front fuse conduit run 16.

Plenty of space for wires, cables and tubes.
On prior pict it looks like the width of the curve is narrower than width of the straight areas. That's just an optical illusion.
Y10-09-11

Date: 09/09/2010
