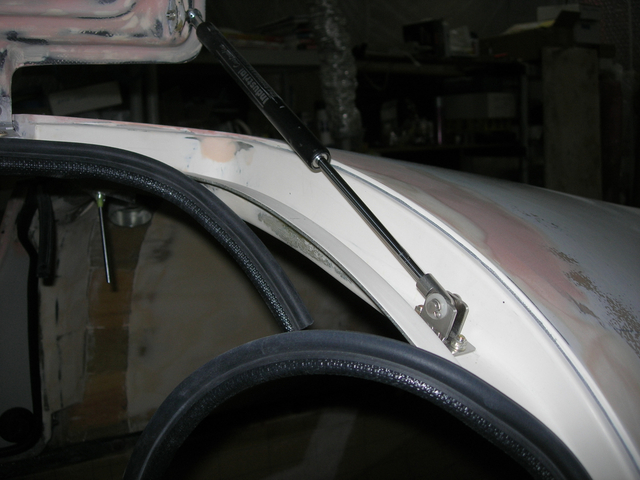

Port lift strut complete 2.

Drilled and tapped port horn where lift strut ball pivot mounts to. Not all that easy of a job because of having to thin horn (CF laid up on each side) so could get a couple of threads sticking out for locknut to latch onto.
Anyway lift strut and mounting hardware is flight ready.
Y9-12-29

Date: 12/28/2009
