Flap cross tube slot tool 2

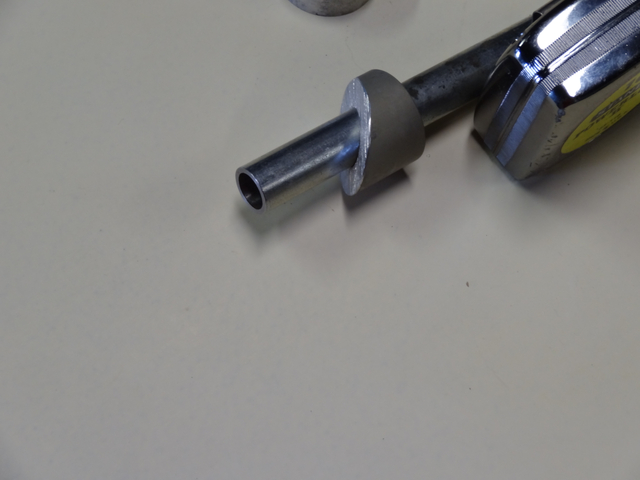

Here's the 30 degree angle sleeve, same diameter as the flap cross tube.
Since the fuse curves and tapers, you slide the sleeve on the 1/2" rod to keep in contact with fuse when lowering and raising flaps, then just marked with a pencil.
