Noise_7

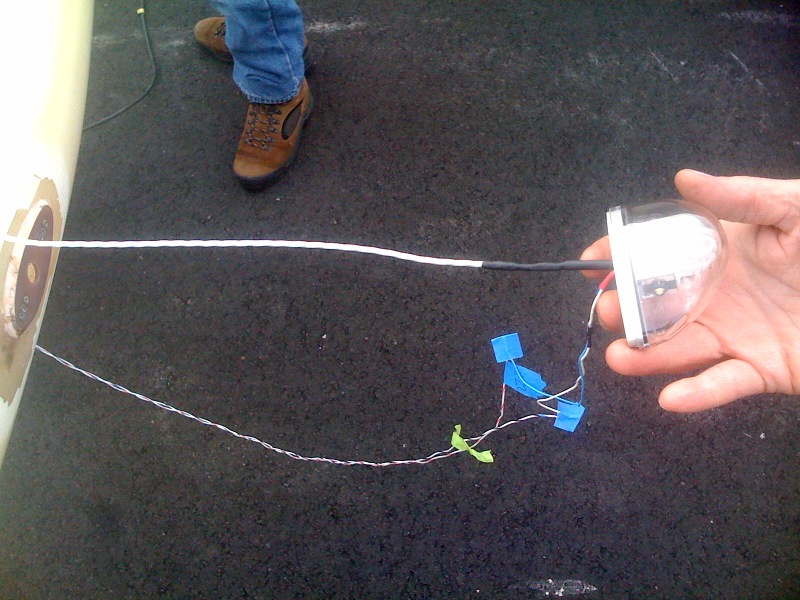

Keeping LED wires out of high voltage shield.
Note that using shielded wire for supply power to strobe power supply radiates a lot of RF right into the fuse! Straight unshielded untwisted pair emits a lot less than shielded and twisted pair emits the least of all. Need to twist right to the power supply.
Y9-03-07

Date: 03/07/2009
Size:
Full size: 800x600
