tailwheel_cabling_2

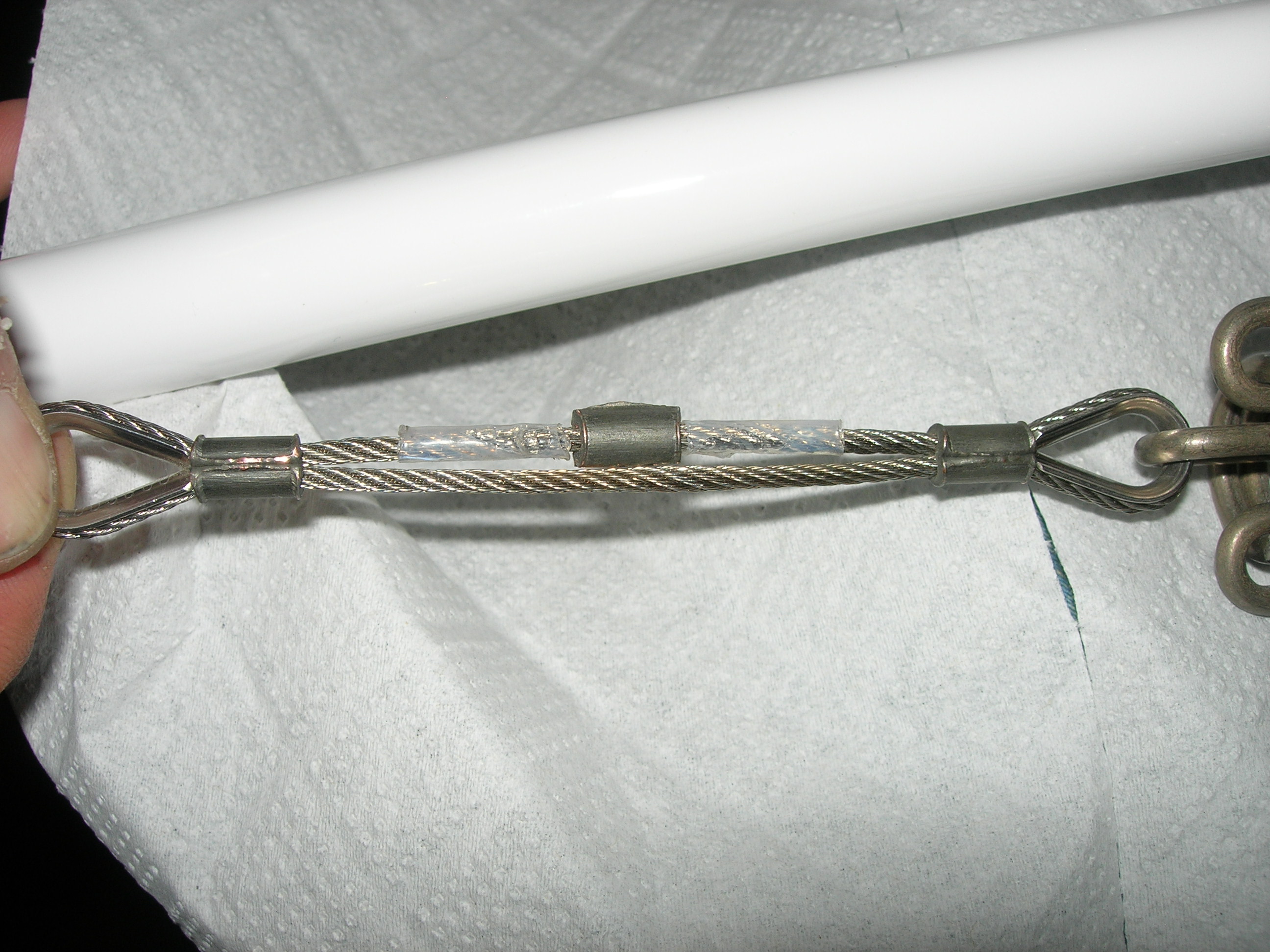

Detail of cable, only three nicos, but stronger than four due to load sharing of second cable by attaching tails! Heat shring is McMaster teflon with adhesive lining.
Aft fingers were cut off thimbles.
Didn't use supplied galvonized nicos that are not recommended for stainless cable, but tin plated copper that is recommended for stainless cable.
Y9-04-22

Date: 04/21/2009
