Starboard_panel_windscreen_joint_Y9_06_07

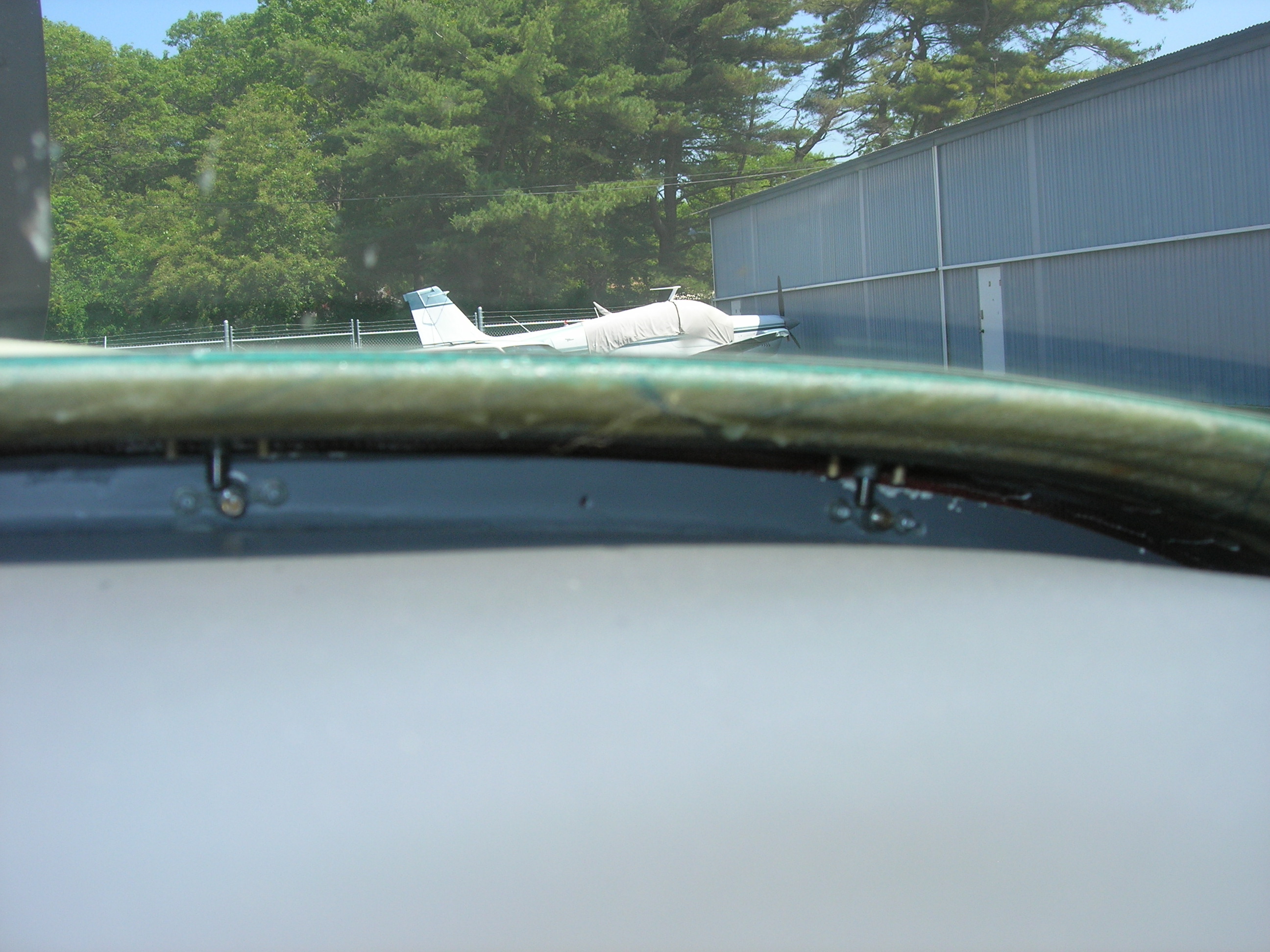

Starboard panel.
Richard said only 10 to 15 minutes to get out panel, longer to install. He has no access panels on firewall from engine side, just makes connections with panel on the way in.
His conduits run to aft side of panel, there are no holes cut in panel for wire and tube routing.
Y9-06-07

Date: 06/07/2009
