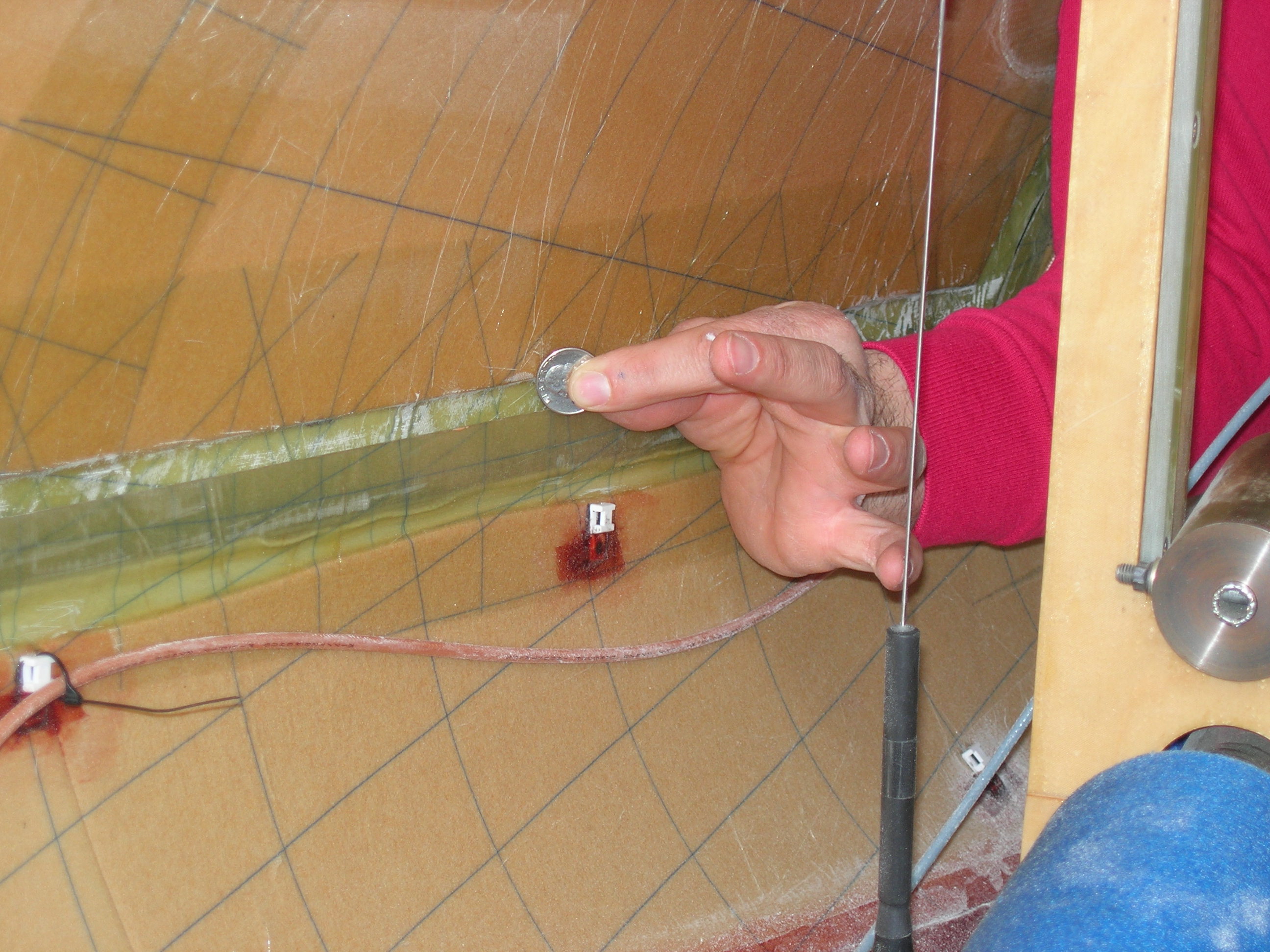

This is a shot of starboard side. You can see foam gap above the bottom fuse flange and gap below the lower fuse flange joggle. I am reaching in from access hole just ahead of stabilator/spar. You can just about make out above my left elbow the gap on upper fuse where the seam begins to head up at a 45 degree angle, it is close to twice the gap where the quarter is. The port gap on the 45 degree is about the same as on the starboard. Since we are on the 45 degree angle seam, there is only about 1/2" contact between top and bottom fuse in that area that will be Reduxed.
Y9-03-25
