Port instrument insert 1.

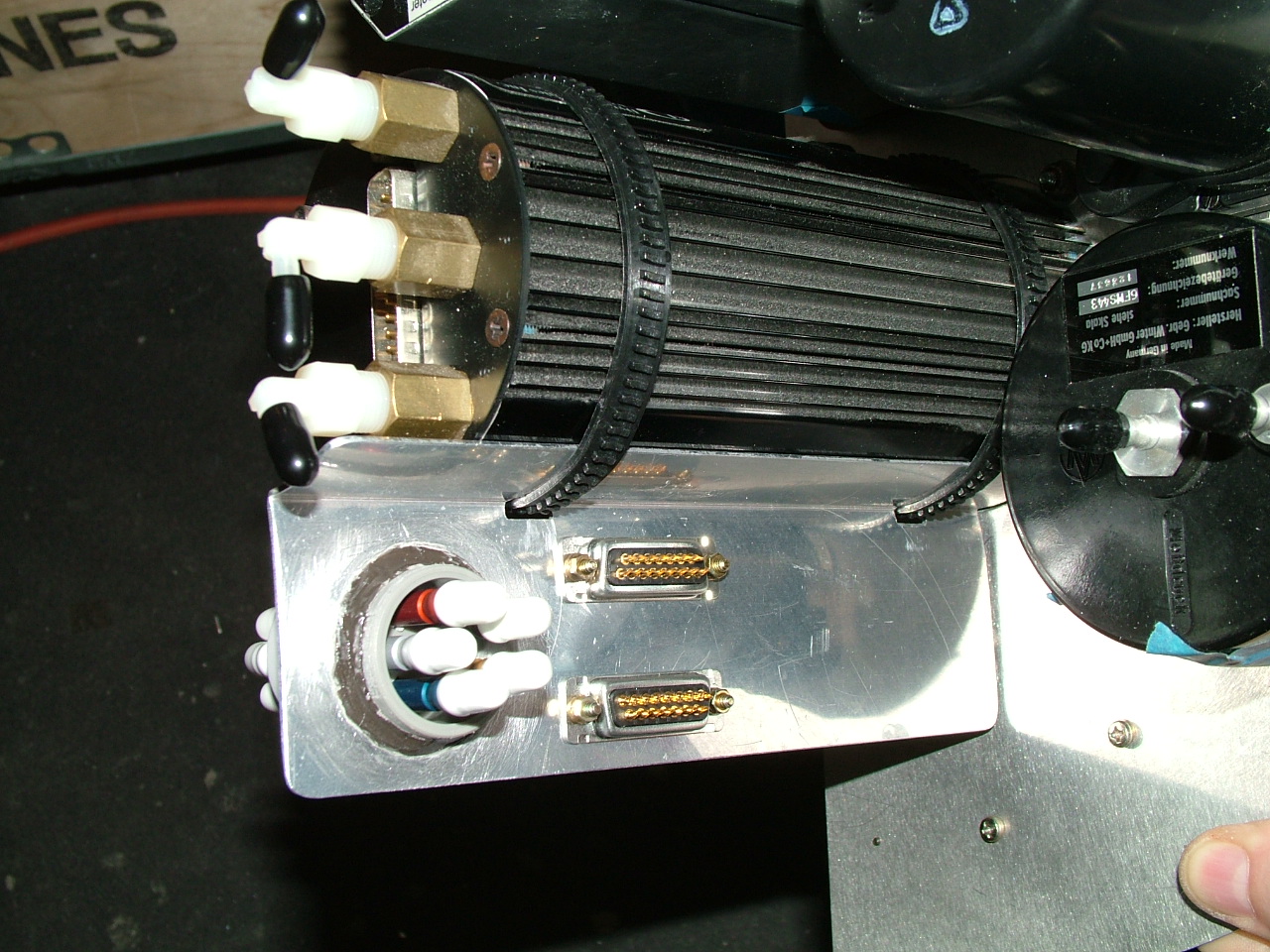

In order to allow easier install and removal of port instrument insert, installed two 15 pin panel mount D-Sub solder pot connectors and a 5 port Winter pneumatic connector. The Winter connector is JB KWIKed in place.
Y10-04-22

Date: 05/02/2009

Size:
Full size: 1280x960

Photo Properties

summary details

Make	FUJIFILM	Model	FinePix S7000
Aperture Value	f/5.7	Color Space	sRGB
Exposure Bias Value	0 EV	Exposure Program	Aperture Priority
Flash	Compulsory Flash	Focal Length	11 mm
ISO	200	Metering Mode	Multi-Segment
Shutter Speed Value	1/60 sec	Date/Time	Sat 02 May 2009 11:21:06 PM UTC
