Rotax 914 TCU control wiring.

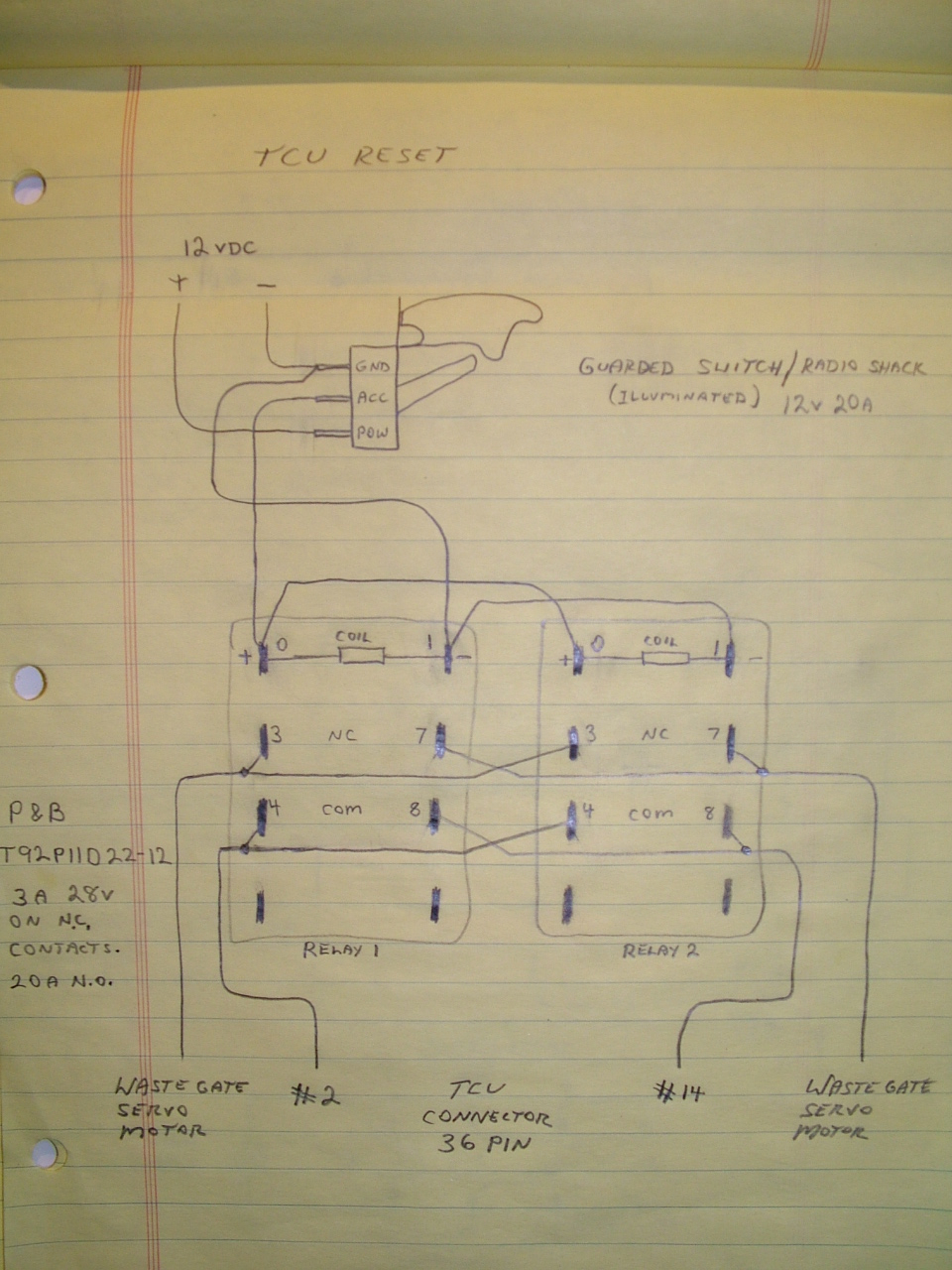

Wanting to use Radio Shack switch added a little complexity, but using two relays with jumpers add a bit of redundancy.
