Mid panel insert 14.

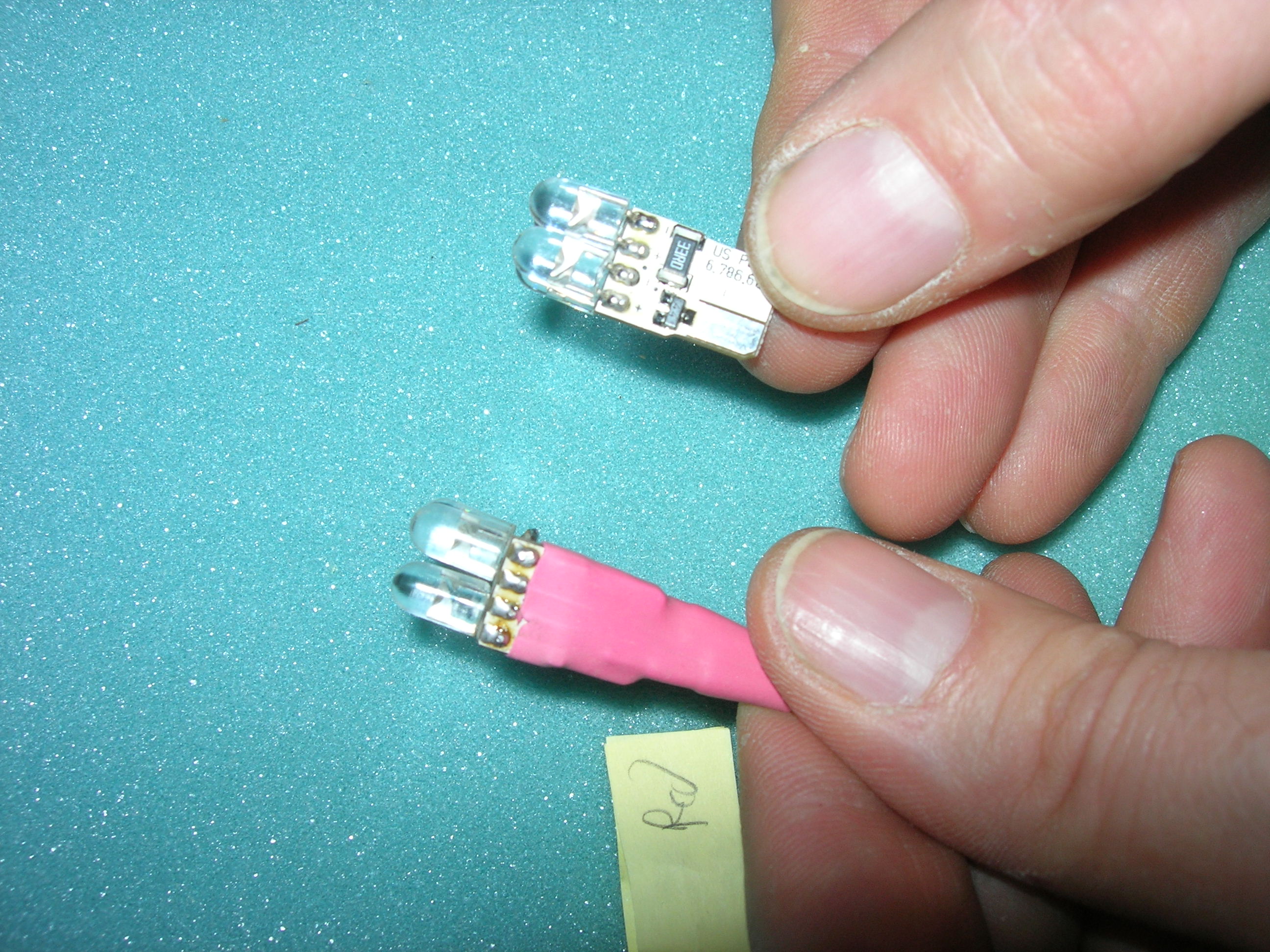

This Red LED being used for low oil pressure had to be modified and reconfigured to 3 LEDs. Since the circuit has two LEDs in parallel, there is a fourth LED hidden under the heat shrink.
Y10-12-01

Date: 11/29/2010

Size:
Full size: 2592x1944
