Mid panel insert 15.

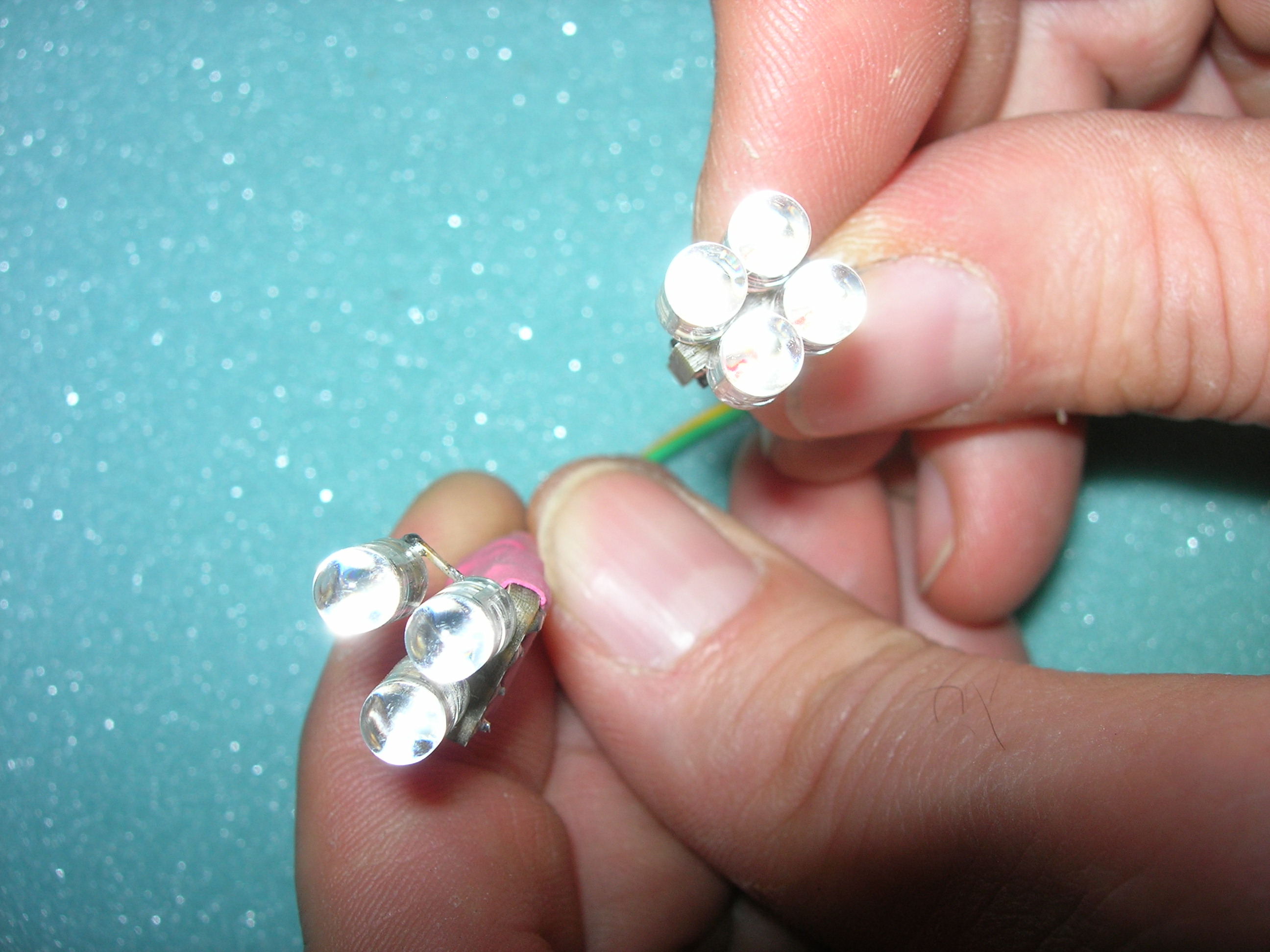

In order to fit the three LEDs, one had to be moved to the other side of the circuit board. Art used some LED leg clippings to mount the third LED as the Bus wire we have, (from Rat Shack), is not stiff enough for my liking.
Since this pic Art added a little JB KWIK Weld to the third LED on the back side that holds it in place nicely.
