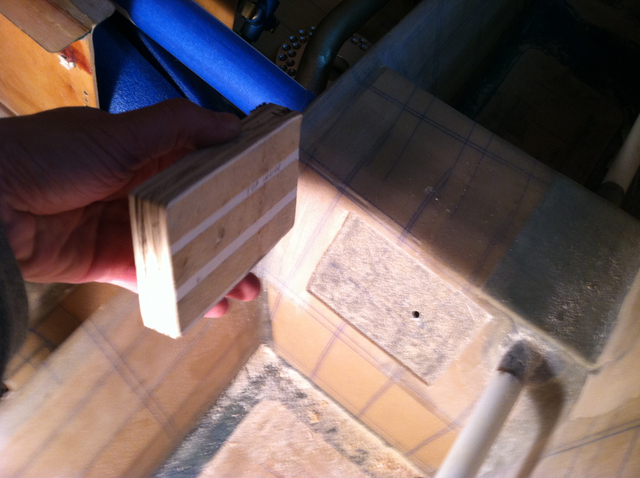

Drill jig and plywood insert

We made a paper template and double sticky backed it to the plywood.
There is also a the plywood that will be glassed in place double sticky backed to the thick plywood jig.
Both got shaped to the paper template (allowing 1/8" gap all around).

Y13-11-278

Date: 11/27/2013
