Lower port insert wiring 3.

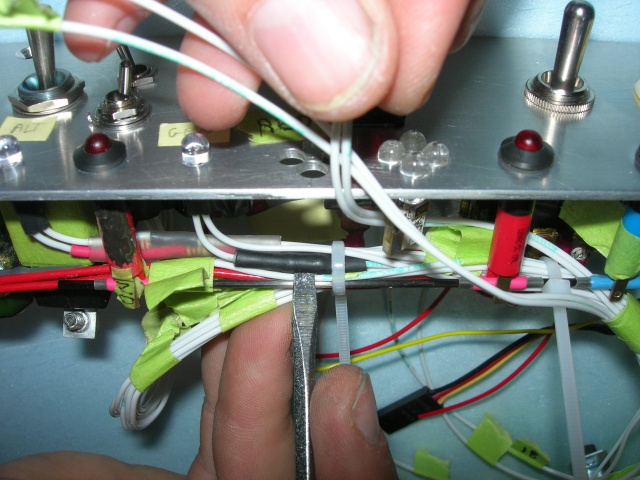

Here I am pointing at the two 220 ohm resistors, (one in series and one in parallel), with our main alternators, (SD20S), regulator, (LR3C), yellow LED indicator so it won't glow too bad during normal operations.
Y10-08-31

Date: 08/31/2010
Size:
Full size: 2592x1944
Lower port insert wiring 3.
