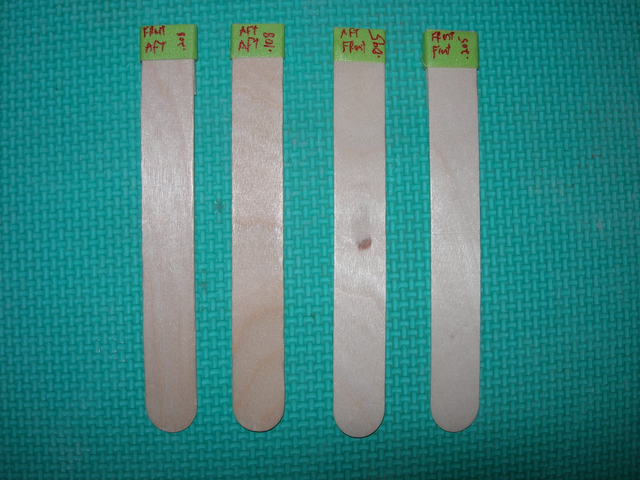

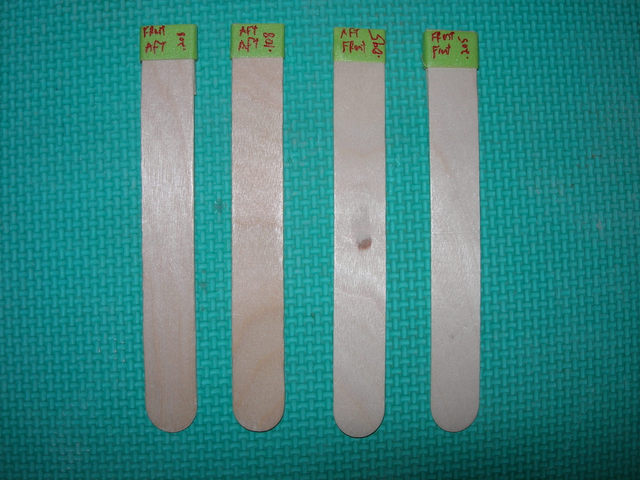

Used these tools to measure gap.

Used these tools to measure gap.
Worked perfect!
Over wrapped, then started taking off 2 or 3 flats at a time, and when felt getting close went down to 1 flat.
Spacers were fabricated from G-10 and probably within .005" of our measuring sticks.
