Pin and striker upper aft 1.

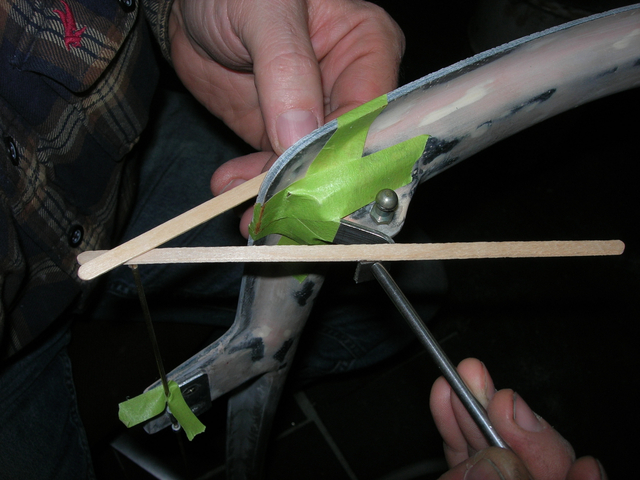

You can see geometry here where contact area of pin and striker will be below top of door as far as it can go, and inboard as far as it can go.
Note tip of sticks are resting on middle of full length hinge pin.
