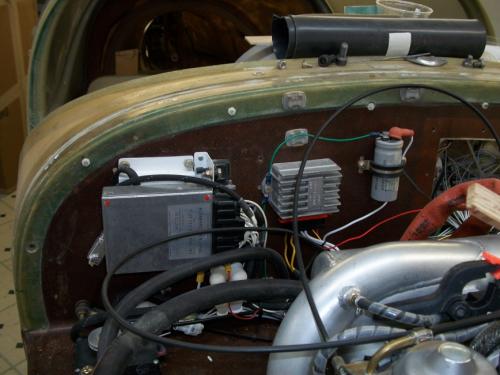

Bud 4.

I really like the TCU and servo on the footwell now.

I'm curious, why didn't you just make your cooled cover encompass the regulator and use that for cooling?

I have on some aircraft, but the photo's you are seeing one was already installed, and the other is a 912 with plenum and cowl heat won't be a problem.
Bud

Y10-02-17

Date: 02/17/2010
Full size: 500x375
