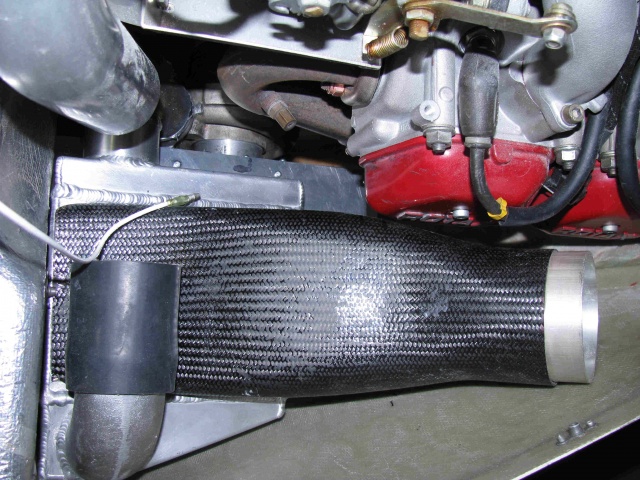

Intercooler with wedge inlet.

Pauls install, starboard side cowl inlet feeds the intercooler, the port sider feeds the plenum on the engine.

Date: 06/13/2010
