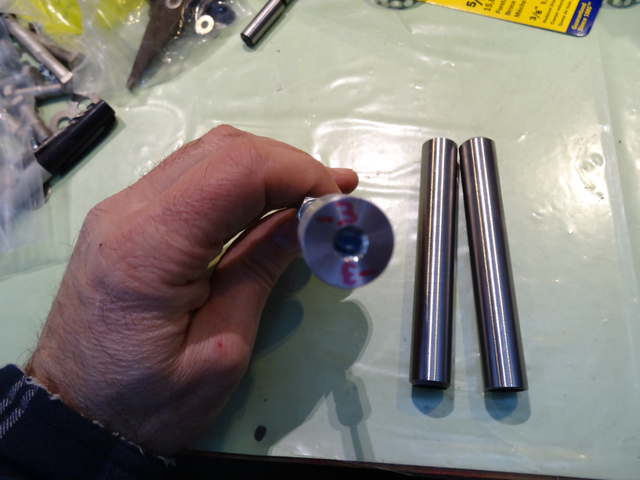

Go No-Go gauge 2

I have a precision micrometer that I measured the inserts with.
They vary in diameter by ~ .001", I used the average and made this side .003" undersized.

Y13-12-27
