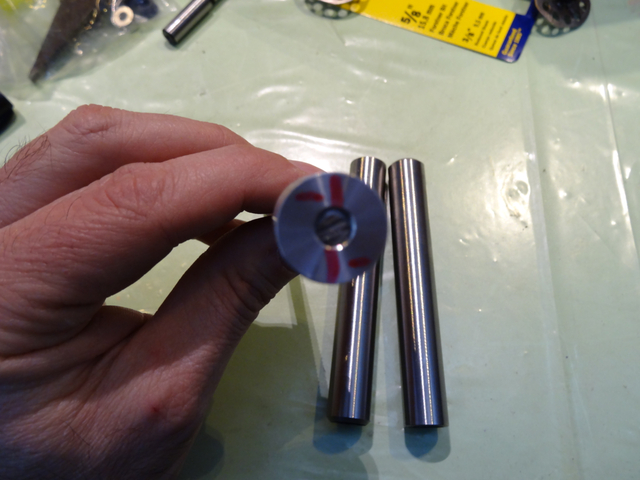

Go No-Go gauge 3

If I can't slide this gauge in, I'll try the .003" under. I may need to try and enlarge any undersized areas or make the inserts smaller in OD in that area.

Y13-12-27

Date: 12/27/2013
