IM002970

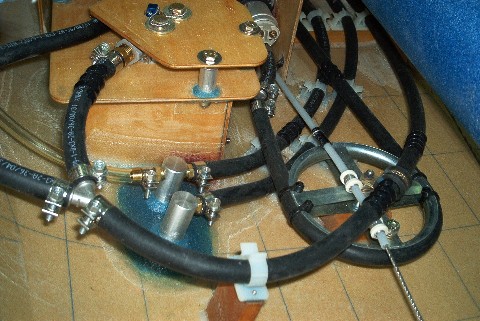

Using 5/16" "Y" barb fittings injection molded using 316 Stainless Steel. You can easily see feed "Y" on left, outlet of manifold has same "Y", you can just about make it out on right of box, it is heading towards clothes line pulley. Very clean inside bore, a lot less restriction than "T"s.

Date: 10/30/2007

Full size: 480x321
