Reinforcement

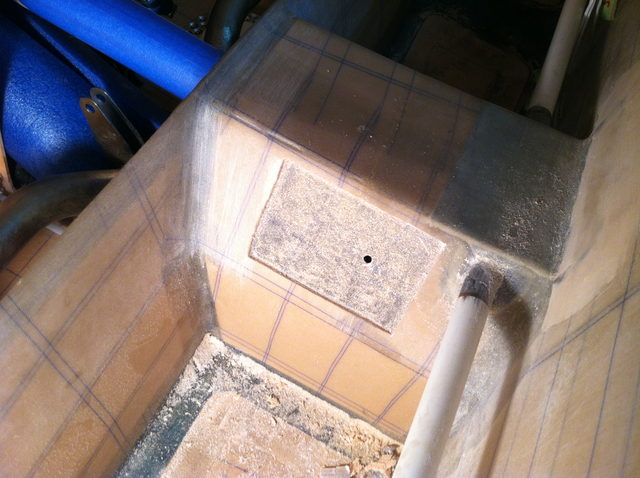

Before mutilating the aircraft, we actually mounted and played with the air-brake cable in situation by single point mounting.
Once happy with operation, cut out top layer of glass and removed foam from this 3" wide x 4.5" long area.

Y13-11-27

Date: 11/27/2013
Size:
Full size: 2592x1936
