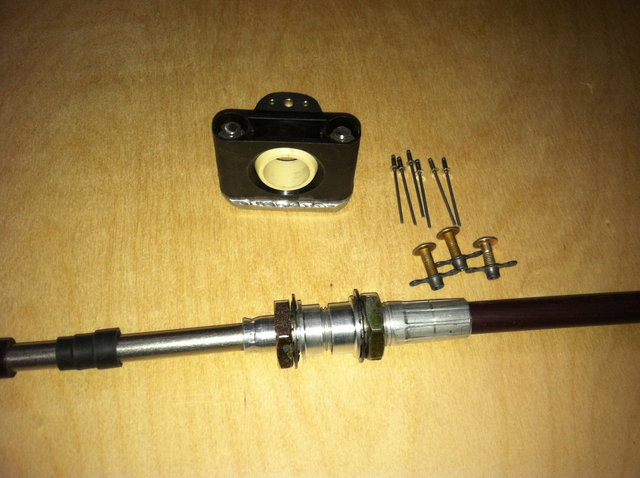

Nut-plates

Will install nut-plates since it would be difficult to put nuts on the screws. This bracket will be mounted between the pitch push-rod and pitch push-rod tunnel wall just aft of the rear lift-pin tie-bar.

Y13-11-27

Date: 11/27/2013
