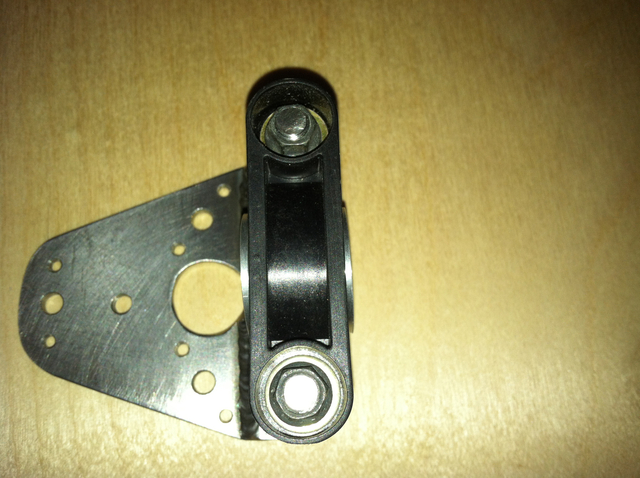

1/4-28 jam nuts

This pillow block was meant for cap head screws to be used to mount.
I installed a washer and a 1/4-28 metal deformed thread jam nut.
Very clean.
