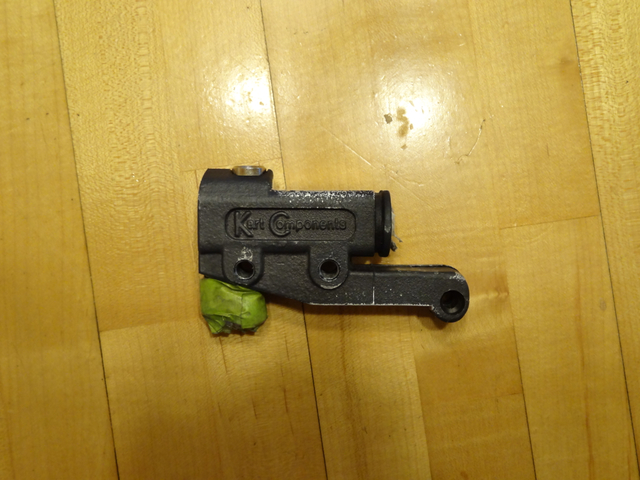

Mill round slot in master cylinder 2 of 12

I first held by mounting holes in milling machine vise, then milled top flat, rested on parallels and milled bottom flat, then to mill round slot, held between top and bottom.

Y13-12-23

Date: 12/23/2013

Size:
Full size: 4896x3672
