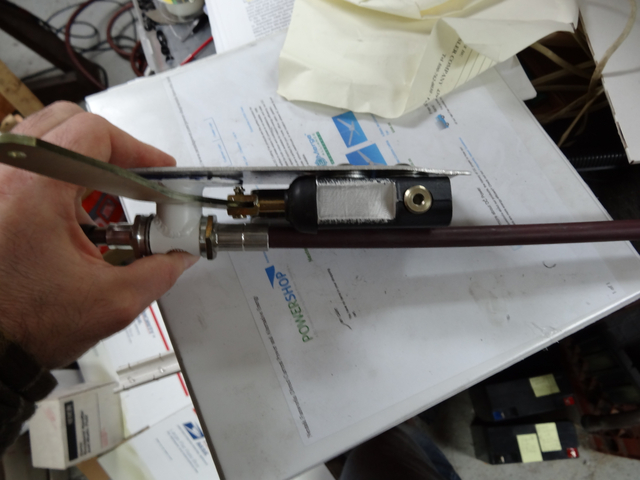

Mill round slot in master cylinder 12 of 12

I shortened the two mounting screws so they will not protrude into the milled round pocket.

I ordered flat head 82 degree screws and a piloted counter sink to mount the master cylinder with. The insert in the tunnel is 3/32" thick, so should be OK.

I just ordered some Ultra-durable Gray Brake Paint that actually resists DOT 3 brake fluid:
http://www.eastwood.com/ew-brake-gray-aerosol-13-oz.html
that I will use on the master cylinder.

Y13-12-23
