Front HardPoint 10

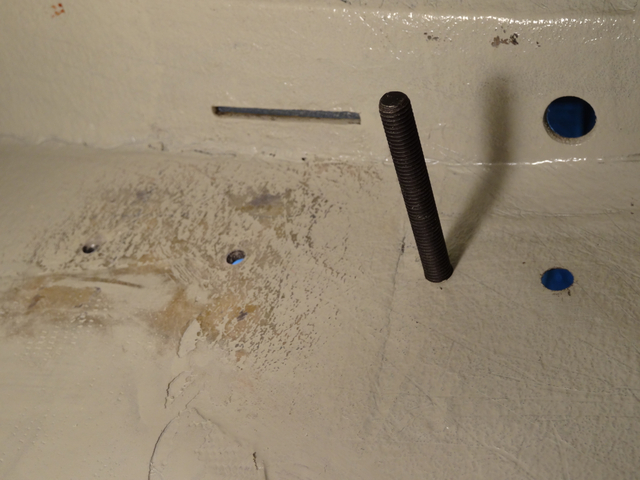

Forward cable mounting holes drilled using my drill guides.
Worked well.
The guides popped right off with a Irwin channel lock pair of pliers.
I need to cut down the length of the flat head master cylinder mounting screws.

Y13-12-30

Date: 12/31/2013
