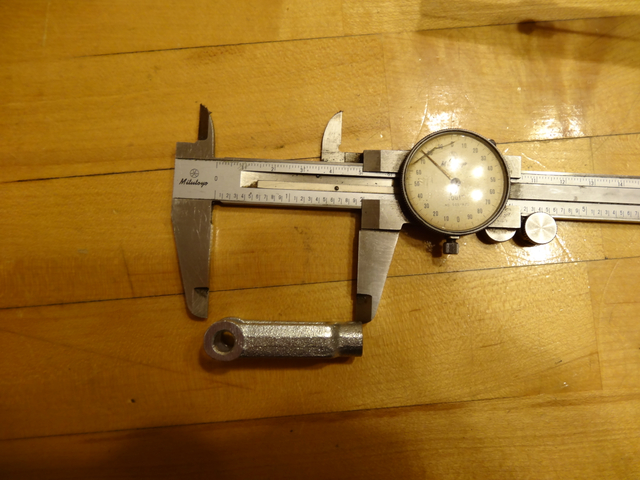

Rod end clevis fork ground down to 1.975" (again minimum 9.5 threads of engagement)

Closer measurement after deburing has the overall length at 1.985".
The threaded portion is .450".

Date: 12/13/2013

Size:
Full size: 4896x3672

Rod end clevis fork ground down to 1.975" (again minimum 9.5 threads of engagement)
