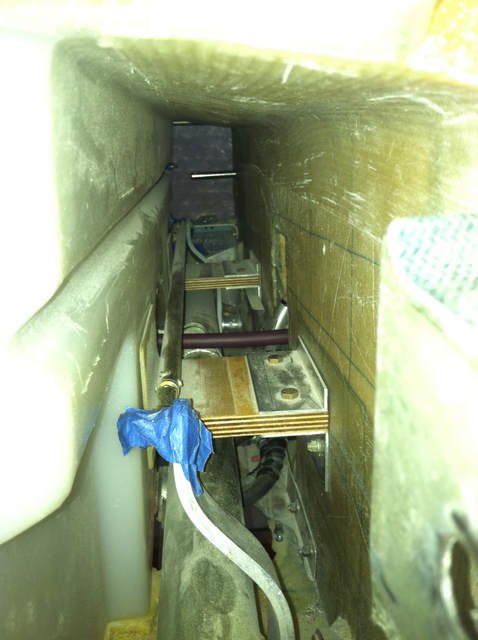

Cable Happy in Spar Tunnel 1

We didn't yet add any clamps. The cable is only mounted at the aft and front.
Here the gear lever is in the up position.
Cable is happy below the aileron cross push-rod and above the pitch cross tube.

Y13-12-12

Date: 12/12/2013
