Eric Engineering increase in force needed when cable is deflected 1

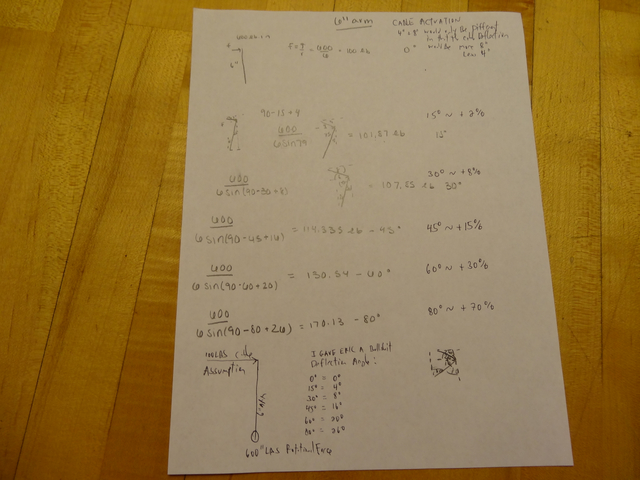

I made up deflection angles, so this is only ballpark numbers.
Deflection at 45 degrees requires ~ 15% additional force.
Deflection at 60 degrees requires ~ 30% additional force.

Y13-12-02
