Eric Engineering increase in force needed when cable is deflected 2

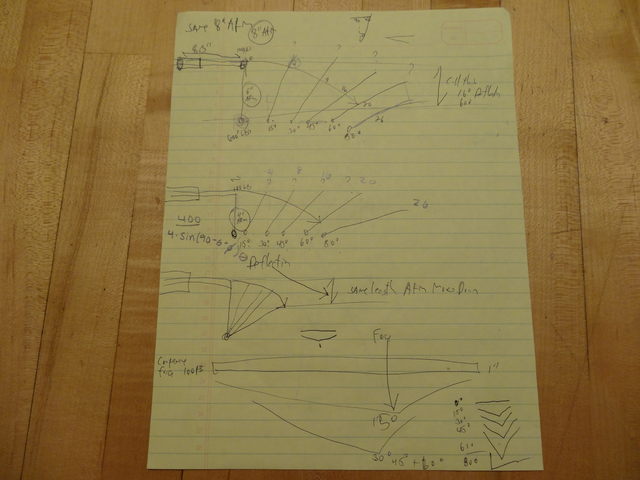

I wanted force using 4" arm and 8" arm, the numbers are the same as the prior using a 6" arm except there is different deflection, so that will skew things a little.

Y13-12-02

Date: 12/03/2013

Size:
Full size: 4896x3672
