String 4

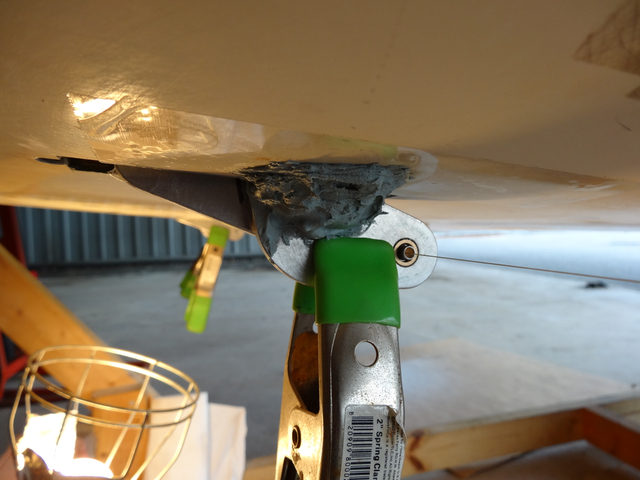

FL 16s are clamped to the flap cross tube lugs and Bondoed to both the top and bottom of the fuse floor.
After string was as centered as we could get.
Y13-08-03

Date: 08/03/2013
