String 3

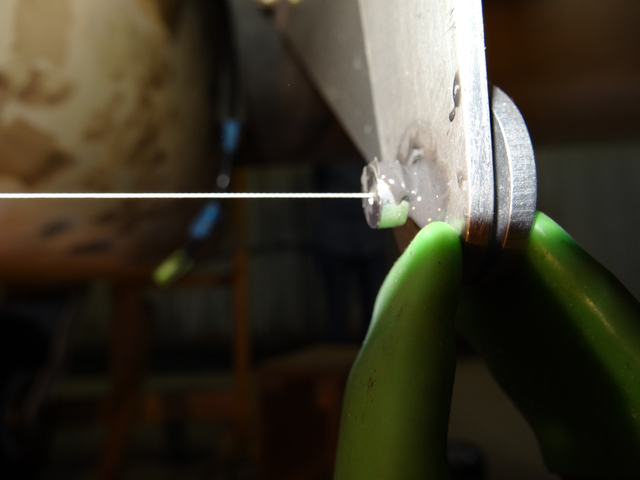

Dihedral of wings causes a slight angle to the sewing thread that is parallel with ground, the center drill counter bore allows sewing thread to exit .0145" hole with out being pushed down.
Y13-08-03

Date: 08/03/2013
