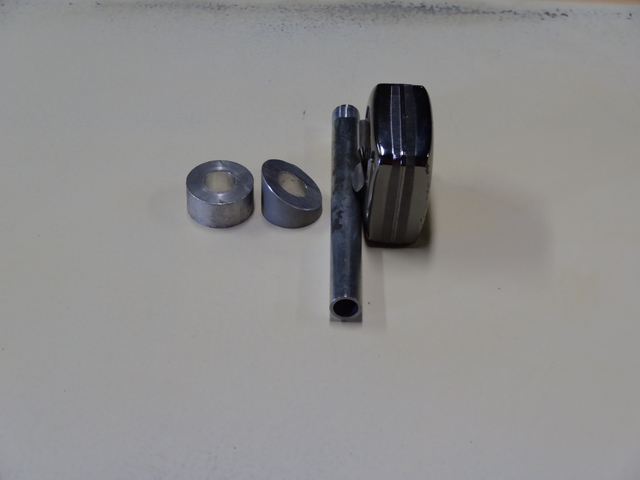

Flap cross tube slot tool 1

I bored a hole in a 1/2" piece of steel that fit the flap drive pin perfectly.
Then cut a 3/4" slot in the fuse and used the aluminium sleeve with either flat or 30 degree angle to mark the fuse.
