FL 18 hollow pivot 3

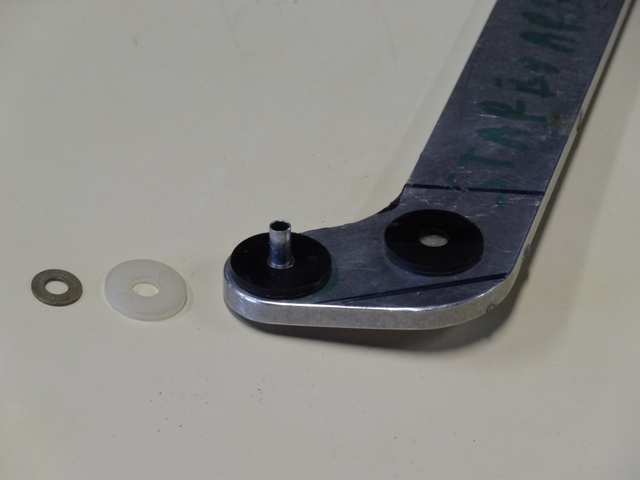

I used the flap bushings from the inner flap hinges, then just cut a piece of .1875 hollow tube (.125" inner diameter pass through hole) with a mini tube cutter.
Y13-08-03

Date: 08/04/2013
