Inner flap string guide 6

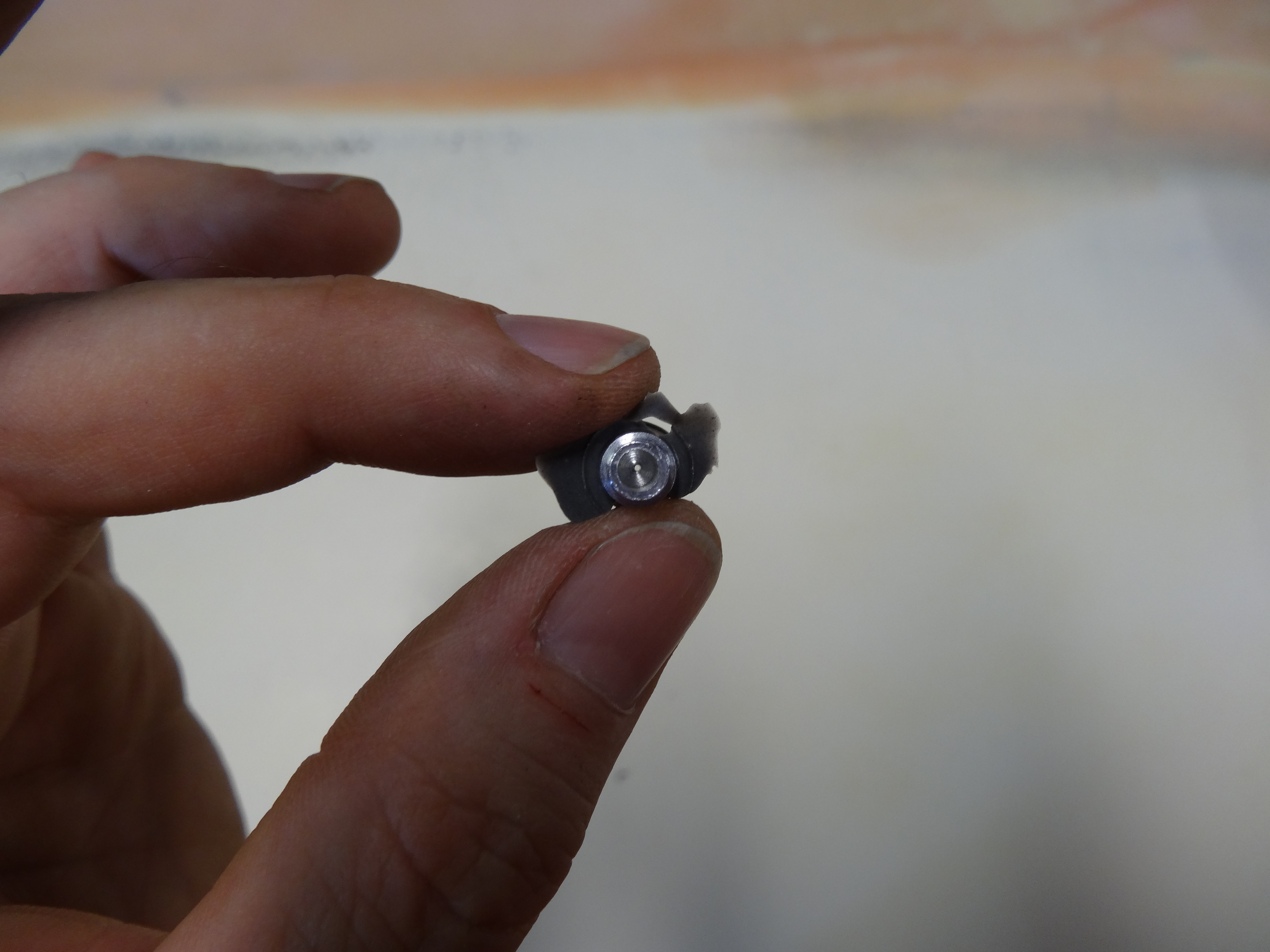

Hard to see, but I drilled a deep .125" hole on this side, so I only had to drill a little less than 1/8" (.125") with the .0145" diameter micro drill.
Y13-08-03

Date: 08/04/2013
