Inner flap string guide 4

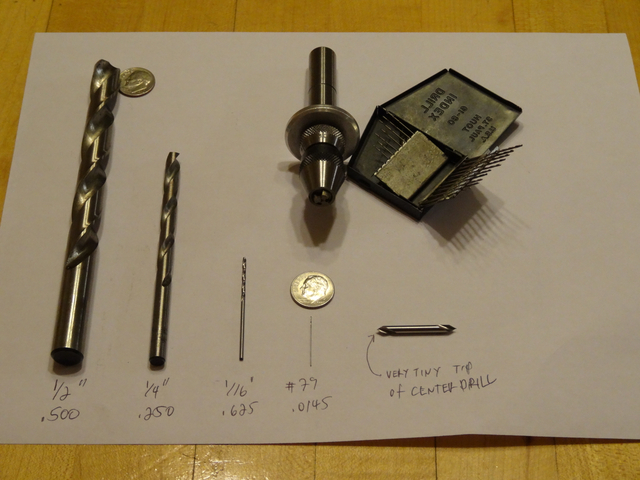

Just a quick pic of small center drill, .0145" drill bit and light pressure drill-feed attachment.
Throw between 1/2" shank and chuck is ~ 1" and is spring loaded to the retracted position.
I made a mistake, 1/16" is .0625", not .625".
