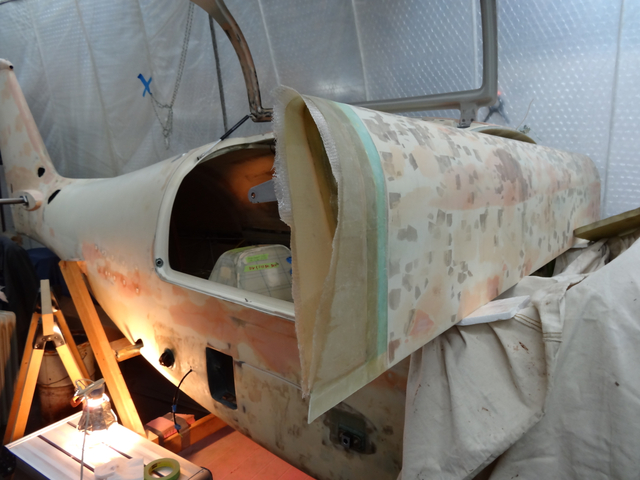

Starboard extension last 2 BID internal lay-up

Completed the last of the flap extension lay-ups, 2 BID internal on the starboard flap.

Y13-11-29

Date: 11/30/2013

Size:
Full size: 4896x3672

Starboard extension last 2 BID internal lay-up
