Flap Upstops 5 of 7

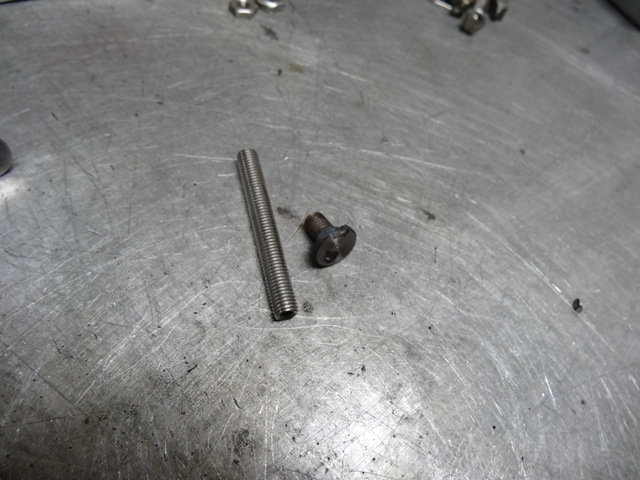

I cut down the Allen screws from 2" length.

This was the first attempt to weld washer, too much heat near end of weld and the washer melted on the edge.

Y13-12-25

Date: 12/25/2013
