Mounting UpStops 1

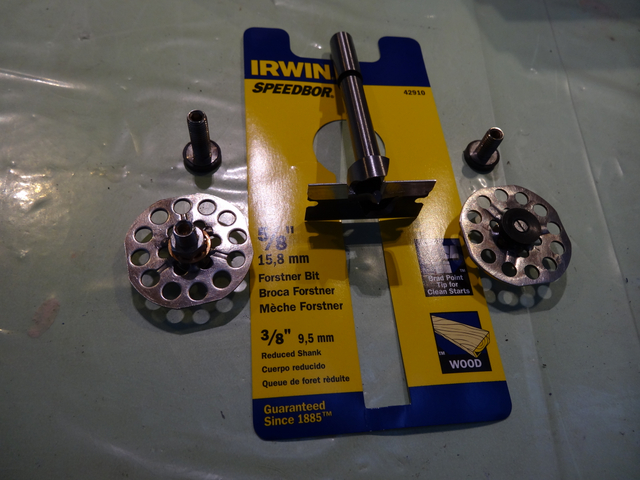

Got hold of a 5/8" drill bit to make hole in aft cockpit module for my UpStops.
Added 1/4" Phosphor Bronze lock washers for jamnuts.

Y13-12-27

Date: 12/27/2013
