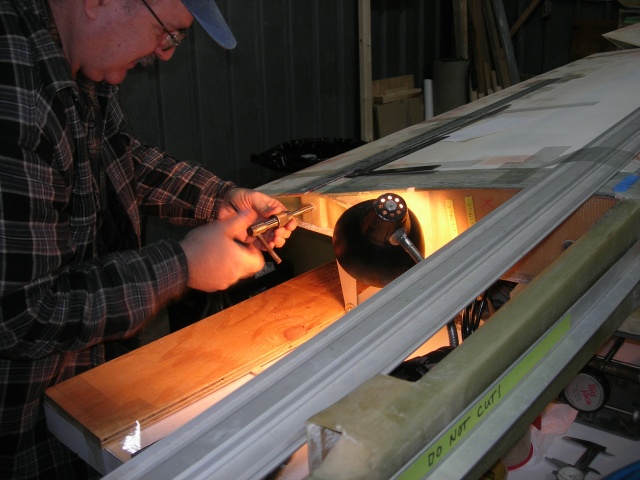

Flap drive pin install 6.

The drill was removed leaving behind the tap still in place.
Then the taping handle was installed to allow finishing the job of tapping.
On this port side we ended up with the pin being off level by less than 1degree, (~.8 of a degree).
