Flap drive pin install 8.

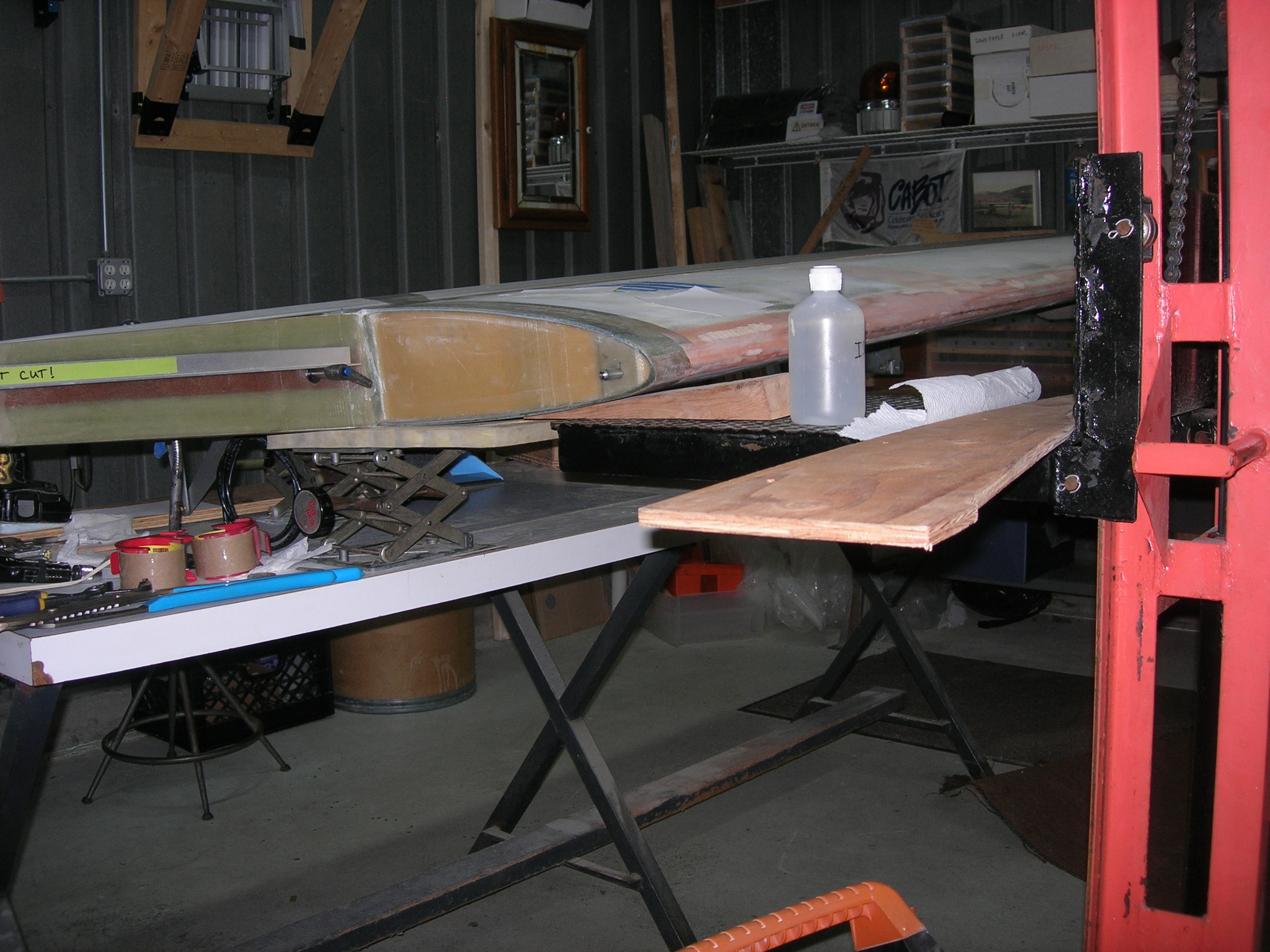

To make sure nothing moves, the lead edge is held firm with my large pump jack and an Oak Surveyors wedge to supplement the two laboratory jacks under the wing root.
Y10-12-01

Date: 11/30/2010
