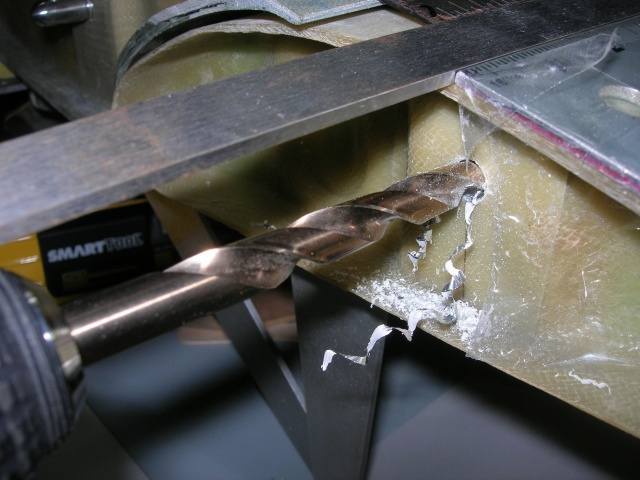

Flap drive pin install 11.

I partially drilled the first 1/8" with a 3/8" fiberglass bit, (no rake on cutting edge), before drilling the final tapping hole. Worked better than on the port side with no ripping of the outside fiberglass layup.
Y10-12-04

Date: 12/03/2010
