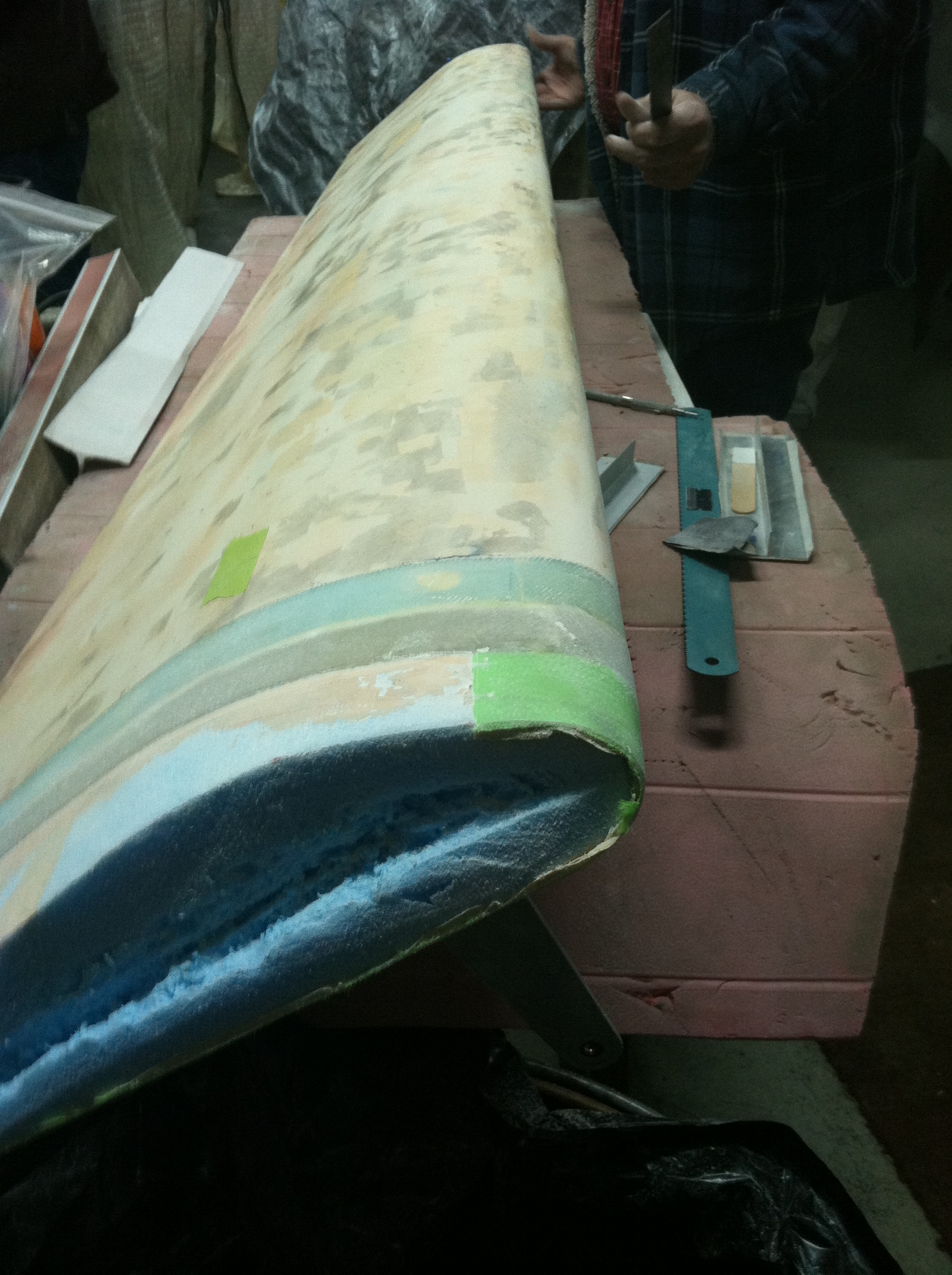

Flap extension 16

Good thing the blue foam is going away! Didn't spend too much time trimming it in the center, only where it is going to be used as a guide to trim the BID layups.
