Flap extension 22

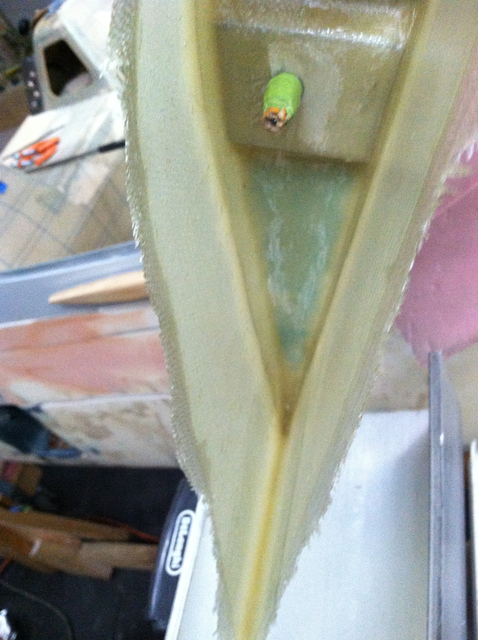

We did this internal 2 BID layup in 3 pieces. First two started at the trail edge and overlapped each other at the lead edge, then a folded in half third piece tied things together at the trail edge.
