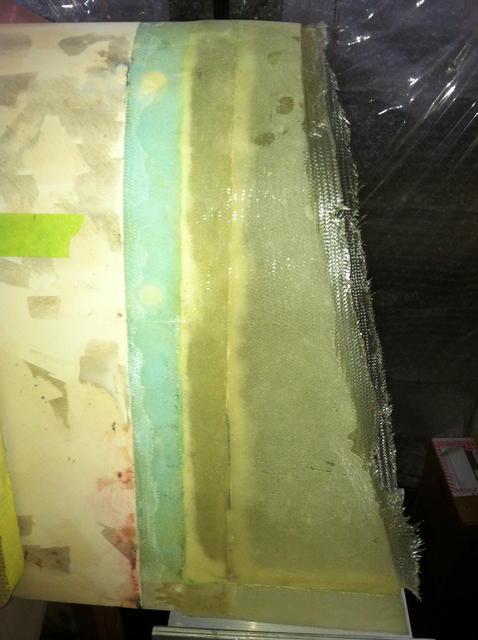

Flap extension 23

Over heater and ready for cure.
The air bubbles just aft of the lead edge were in the Peel Ply, so they are on the surface, not between layups.

Y13-11-25

Date: 11/22/2013
