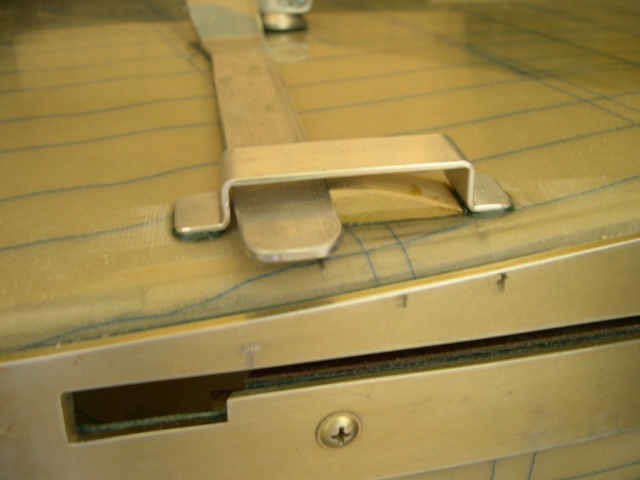

Kingsley 1 Undercarriage unlatched.

FWIW, the attached photos depict what I have done. Photos were taken during
construction.

When the wheel is latched up, the undercarriage lever is free in the up
detent with no load on it whatsoever.

Regards

Kingsley in Oz

Date: 09/04/2005
