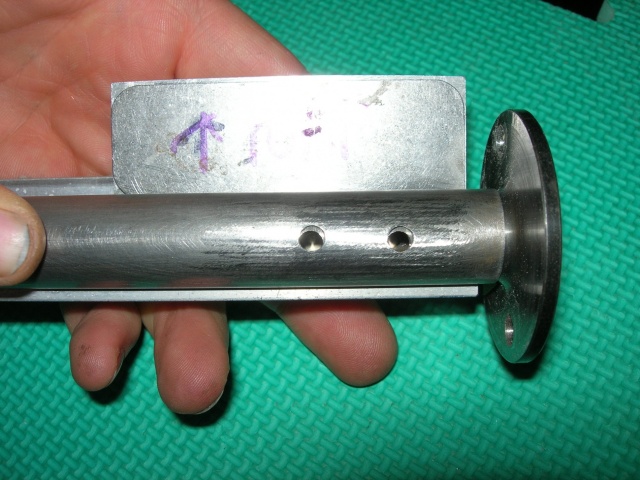

Tie-bar 46.

Shot of fixture and plate in position.
The tie-bar is slightly rotated here in relation to the socket.
The top of the aluminium fixture is drilled for the final 3 holes that go through the wood.
Y10-11-20

Date: 11/17/2010

Size:
Full size: 1900x1425
