Tie-bar 72.

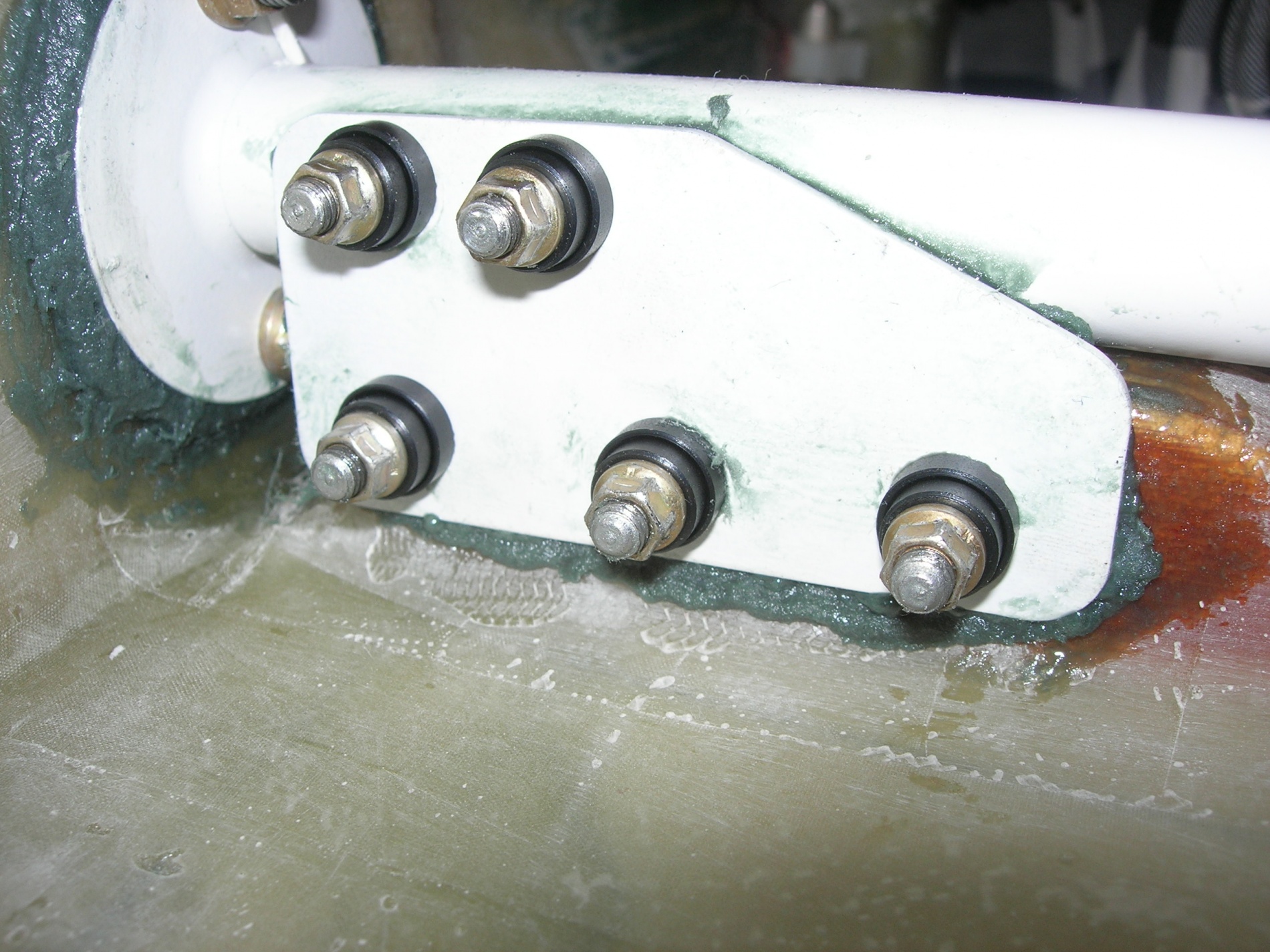

Redux was put on the bottom of both gusset plates and also a fillet was put on the tie-bar where it contacts the gusset plates.
The 5 bolts were not fully tightened until after the Redux was cured.
Y10-12-01

Date: 11/29/2010
