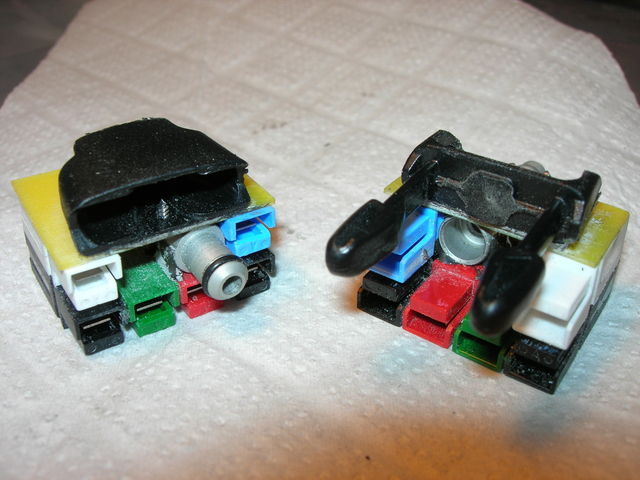

Wing connect 4.

Mutilated buckle is JB KWIKed to G-10 sheets, then got 2 screws each.
Even though connector has reasonable tension, wanted a more positive lock. Tape would work but nowhere near as eloquent.
