Bonding Port lift pin sockets 7.

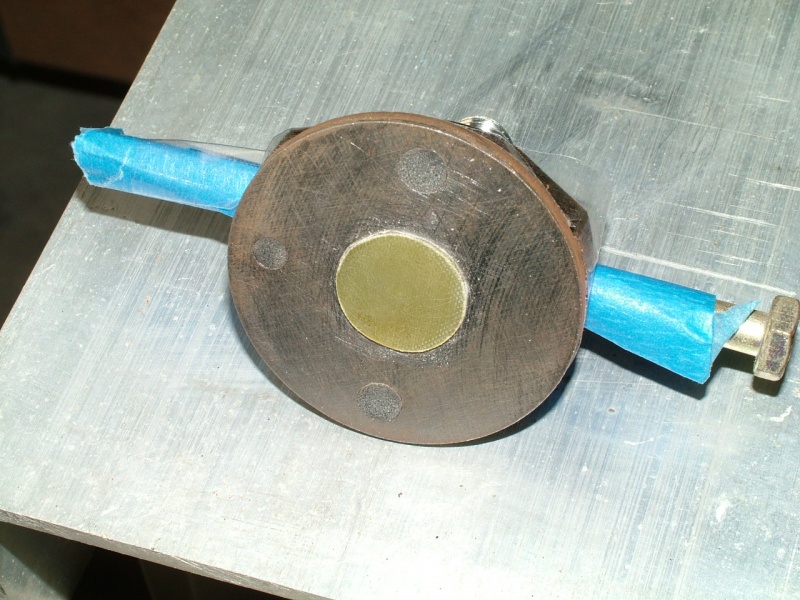

G-10 spacer is JB KWIKed in place and a long screw used instead of the pip pin.
The reason for the screw is to aid adjusting the socket position.
We just used the pip pin on the starboard side and the registration was off a little.
